CPUID

cpuid is the way that software finds out what features the hardware are supported

Detecting HyperThreading support using the CPUID instruction:

1. Check if CPUID is supported (via the EFLAGS ID flag).
2. Call CPUID with EAX=1 (processor info and features).
3. Inspect bit 28 of EDX — if set, HyperThreading is available, and the logical processor count can be read.

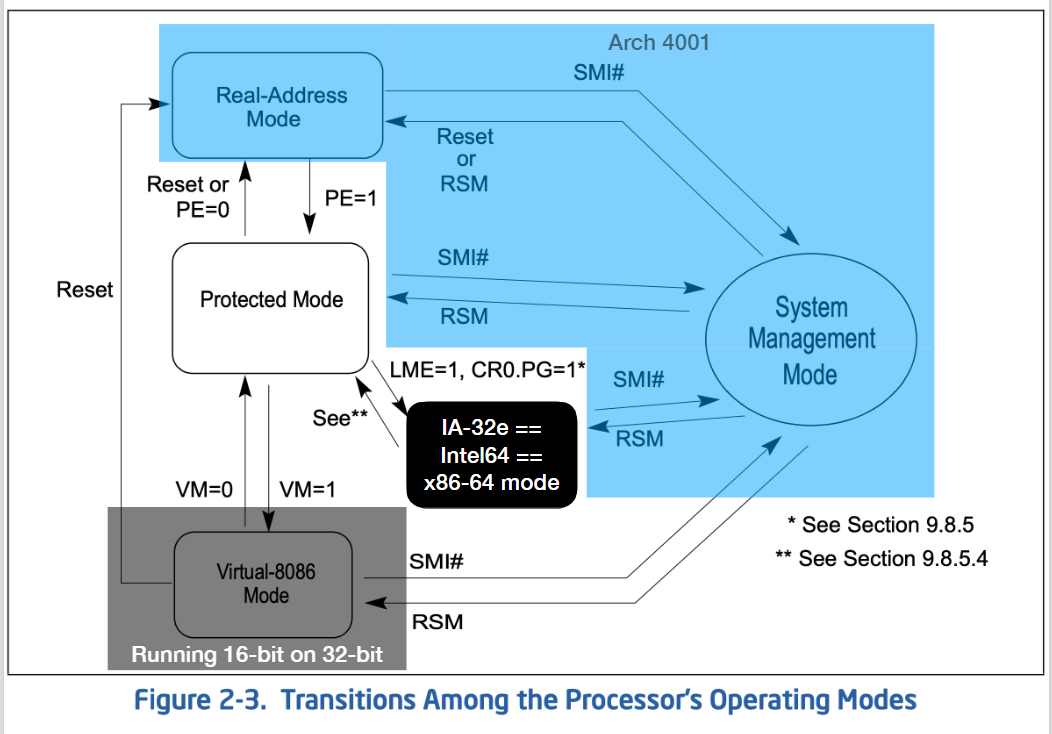

Processor Execution Modes

Mode	Description	Key Features
Legacy Mode	Traditional x86 modes (Real, Protected, Virtual 8086).	32‑bit kernel & apps, segmentation, paging, privilege rings.
IA‑32e Mode	64‑bit “Long Mode” introduced with AMD64/Intel x86‑64.	64‑bit registers, flat memory model, supports 64‑bit & 32‑bit apps (compat).
64‑Bit Mode	Sub‑mode of IA‑32e for full 64‑bit execution.	Requires 64‑bit OS & apps, expanded registers.
Compatibility Mode	Sub‑mode of IA‑32e for running legacy 32‑bit apps under a 64‑bit OS.	Runs 32‑bit code seamlessly, but kernel remains 64‑bit.

MSR

MSR was like a manual of how to set the hardware features ON/OFF, basically guiding hardware feature detection and activation

Commands

• RDMSR
  • Opcode: “0F 32
  • ONLY in kernel mode
• ERMSR
  • Opcode: 0F 30
  • ONLY in kernel mode

IA32_EFER

• run in bot 64 and 32 bits mode

• SCE

  • trigger of Syscall

• “LME

  • Long Mode ON

Privilege Rings & Segmentation

Segment Regisers in x86 CPU

• CS (Code Segment)
  • where instructions are fetched from
• DS (Data Segment)
• SS (Stack Segment)
  • where the stack lives
• ES (Extra Segment)
• FS
• GS

Register	32-bit	64-bit Modern Use
FS	Extra data segment	Thread-Local Storage (Linux)
GS	Extra data segment	TEB (Windows) / sometimes kernel per-CPU

Interrupt

Interrrupts are anotherr way to transform control from one segment to another segment at a different privilege level

Mainpoint

_Arch2001_05_Interrupts_01_InterruptVsException.pdf

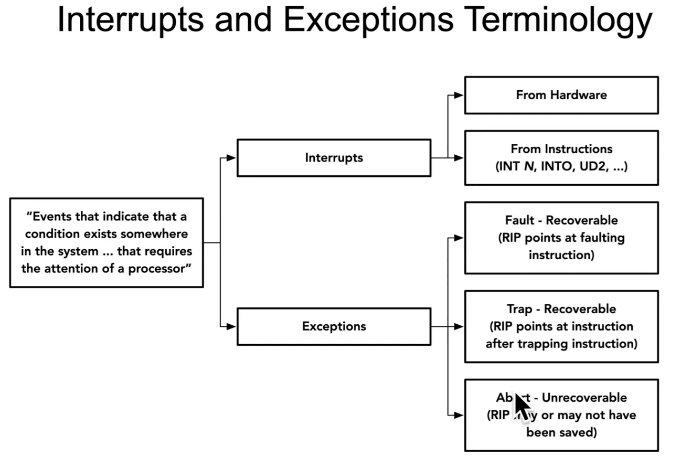

• Interrupts vs Exceptions (E = Error)
• Faults (RIP at faulting instruction) vs Traps (RIP after) vs Aborts
• State saving on stack (32-bit vs 64-bit)
• INT n, INT3, INT1, INTO, UD2, IRETQ
• Privilege transitions via interrupts
• Need Tasks/TSS next to decide where to push state

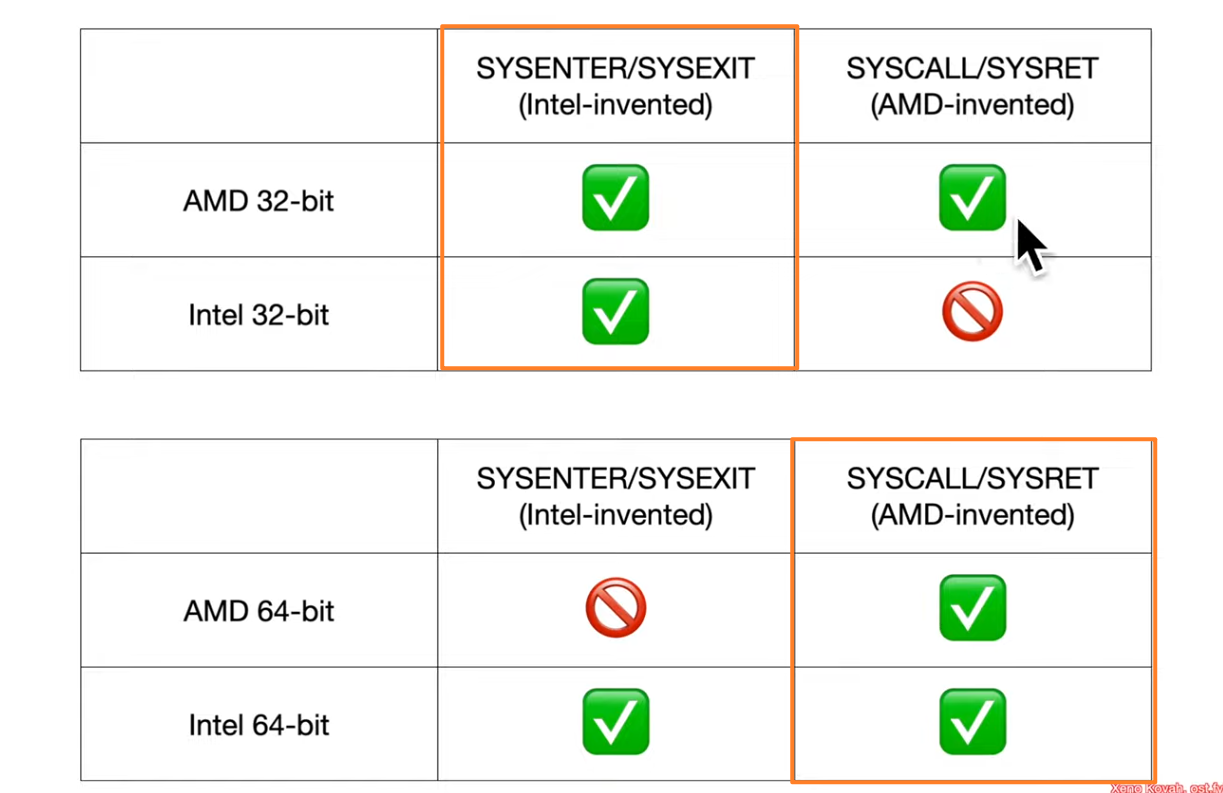

• 32-bit - SYSENTER/SYSEXIT

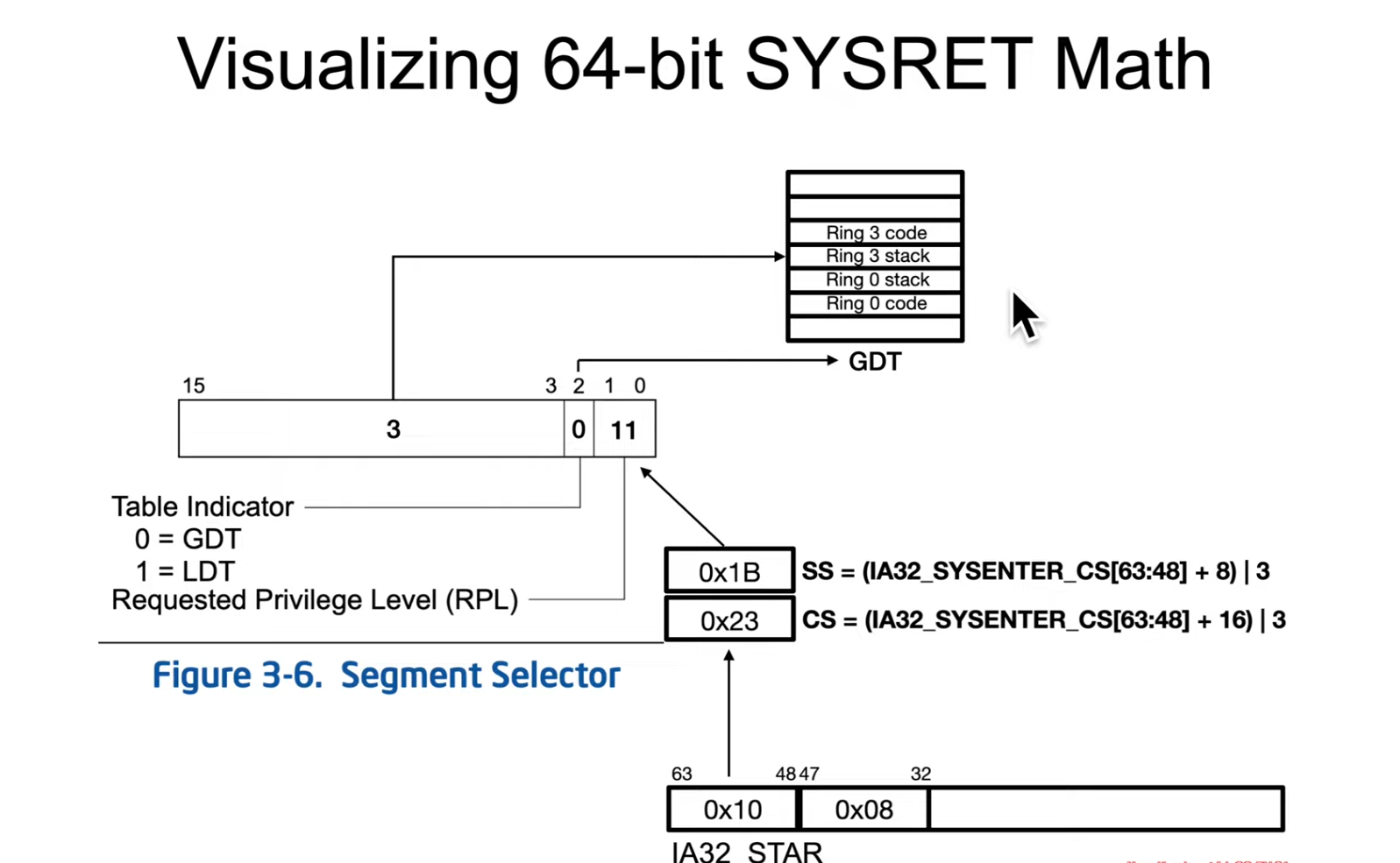

• 64-bit - SYSCALL/SYSRET
  • SYSRET is a privileged instruction btw

Interrupt 0x80 (Linux)

• Purpose: Traditionally used in Linux on x86 to invoke system calls.
• Mechanism: A user program places the system call number in the EAX register, sets up arguments in other registers, then executes int 0x80.
  • BTW INT is pairing with IRET, just like PUSH/POP
• Behavior: The CPU switches from user mode to kernel mode, jumping to the interrupt handler defined for vector 0x80. The kernel then dispatches the requested system call.
• Notes:
  • This was the classic way to make syscalls in Linux.
  • Modern Linux prefers the sysenter/syscall instructions (faster, designed for system calls specifically).

Interrupt 0x2E (Windows)

• Purpose: Used in older versions of Windows (NT family) for system calls.
• Mechanism: Similar to Linux’s int 0x80, user-mode code would trigger int 0x2E to request a service from the kernel.
• Behavior: The interrupt handler in the Windows kernel would decode the system call number and arguments, then execute the corresponding kernel routine.
• Notes:
  • This mechanism was replaced in later Windows versions by sysenter (on 32-bit) and syscall (on 64-bit).
  • Modern Windows no longer uses int 0x2E for syscalls, but you may still see it referenced in reverse engineering or legacy documentation.

TL;DR

0x2E and 0x80 are interrupt vector numbers. They don’t inherently mean “system call” by themselves; instead, the OS configures those interrupt vectors to point to its syscall handler. The CPU doesn’t know they’re special — it just sees “software interrupt with vector X” and jumps to the corresponding handler. The OS decides what those handlers do.
